Disk Space Monitoring Tool

An increase in data volume stored on a computer disk causes the application to perform less efficiently. Running low on disk space may cause performance issues and even production failure.

The Disk Space monitoring tool notifies you about the amount of available disk space and issues alerts when the minimum disk space threshold is reached.

• Warning: 30GB of free disk spaces remains available.

• Error: 10GB of free disk spaces remains available

The available disk space is indicated for each one of the XMPie servers and detailed per disk. The disk space usage is indicated with respect to the available disk space (for example, 26.24 GB Free of 40GB) and the usage status is illustrated with a colored progress bar. The color of the progress bar represents the status:

• Green - OK

• Yellow - Warning

• Red - Error

The status indicator is displayed at several levels and is refreshed every hour:

Tool	Next to the tool name	The overall status for all XMPie servers.	The tool status severity is determined by the most severe status of one of its severs.
Server	Next to the server name	The overall status for that server.	The server status severity is determined by the most severe status of one of its disks.
Disk	Indicated by the progress bar length and color	The disk space usage	The disk space with respect to the pre-determined warning or error threshold.

Example:

In the above image, the first server has the warning status since the disk C:\ has this status. The second server has the error status due to the disk space error on the disk C:\. The Disk Space tool status is Error since this is the most severe status of one of its servers.

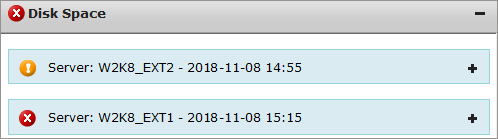

You can click the button next to a server to display only the summary status:
