Services Monitoring Tool

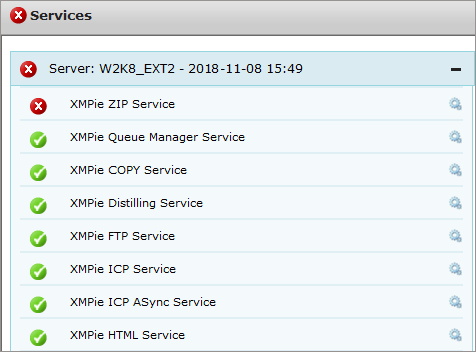

The Services monitoring tool displays the status of XMPie services for each XMPie server. If a service stopped running, it is automatically marked with an error status and an email notification is sent to the administrator. There is no warning status for this tool.

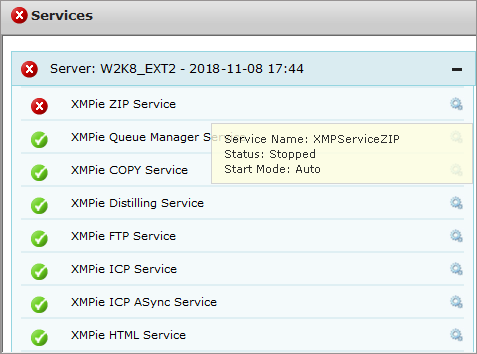

To display detailed information about the service, hover over the Status icon. The following tooltip is displayed:

Option	Description
Service Name	The name of the XMPie service.
Status	Running or Stopped.
Start Mode	The manner in which the service is started: Auto: Service to be started automatically by the Service Control Manager during system startup. Manual: Service to be started by the Service Control Manager when a process calls the StartService method. Disabled: Service that can no longer be started.

Option

Description

Service Name

The name of the XMPie service.

Status

Running or Stopped.

Start Mode

The manner in which the service is started:

Auto: Service to be started automatically by the Service Control Manager during system startup.

Manual: Service to be started by the Service Control Manager when a process calls the StartService method.

Disabled: Service that can no longer be started.

The status indicator is displayed at several levels and is refreshed every hour:

Tool	Next to the tool name	The overall status for all XMPie servers.	The tool status severity is determined by the most severe status of one of the monitored servers.
Server	Next to the server name	The overall status for all services running on that server.	The tool status severity is determined by the most severe status of one of the monitored services. If at least one service is stopped, the entire tool is marked with the Error status.
Service	Next to the service name	The service status.	A service that has been stopped receives the Error status. If you are not using that service, you can disable.

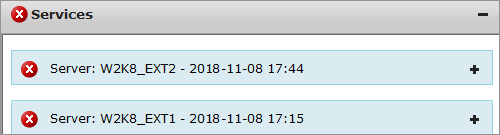

You can click the button next to a server to display only the summary status:
